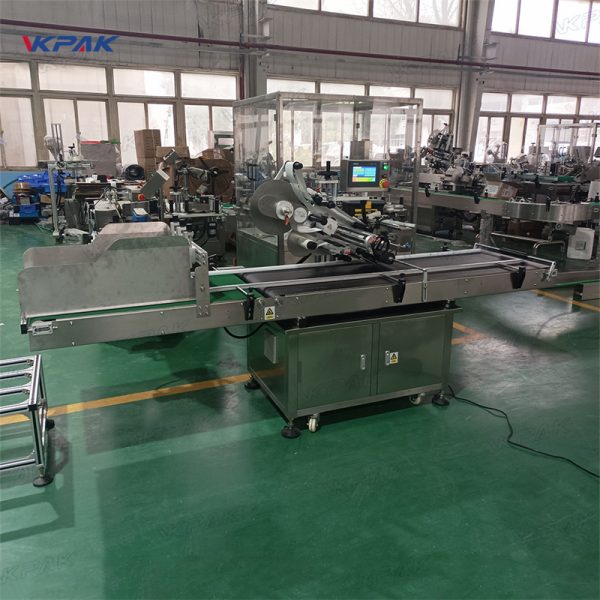

VK-FPL-Z Automatic Flat Folding Cardboard Corrugated Carton Box Labeling Machine
$7,000.00
Tax included. Shipping calculated at checkout.
This carton label applicator machine is equipped with stack feeder, which can separate stacked flat carton box and convey them to the labeling structure, when electric eye detect flat cardboard, the stickers will be labeled onto it. This machine is suitable for food, daily chemical, cosmetics industries.
Output Speed: 15-30 pieces/minute depends on label and product size
Dimension: 2900*1320*1650mm
View Video Download PDF
Description
VK-FPL-Z is a modified design based on VK-FPL. It is specially designed for large folding corrugated boxes. The machine is equipped with a wider carton feeding device and conveyor belt. You only need to manually place the stacked cartons into the feeding station, and the machine will automatically separate each carton and enter the labeling station one by one to complete the labeling.
With PLC control panel, it is easier to set and adjust working parameters. The language of panel can be customized as your need.
It is designed for separating flat cardboard before labeling, saving labor cost. The position of roller can be adjusted according to cardboard size.
Designed with roller, it can help to fix cardboard during labeling, ensuring good labeling effect. The height of labeling structure can be adjusted as production need.
The sensor is designed for detecting products and control the machine to stick labels accurately. Intelligent and efficient.
Equipped with high-quality components, this machine can run steadily and run for a long time. Ensure production efficiency.
Parameters
| Model | VK-FPL-Z |
| Labeling Speed(pcs/min) | 15-30 (relate to products and label size) |
| Labeling Accuracy(mm) | ±1.0mm |
| Suitable Label Size(mm) | (L)10-300mm(H)10-200mm |
| Suitable Products Size | (L): 200-1000mm, (W):200-1000mm |
| Machine Size(mm) | (L)2900*(W)1320*(H)1650(mm) |
| Power Supply | AC220V50Hz/60Hz |
| Operation Direction | left to right or right to left |
| Net Weight | About 350Kg |
| Label Material | self-adhesive sticker, opaque or transparent label |
This machine is specially developed for sticking self-adhesive labels on large cartons in the flattened state. The automatic feeding device developed for cartons can put a stack of cartons with a height of 300mm at a time, and can automatically separate the cartons to the conveyor belt of the labeling machine. Reduce the fatigue of workers; add an automatic material receiving mechanism to collect cartons into stacks, which is convenient for workers to take away.
Features
1. Universal equipment, suitable for labeling cartons in a flattened state, and used for inventory management of cartons.
2. According to the labeling quantity requirements, one or more labeling heads can be provided.
3. Optional material distribution mechanism can realize automatic separation of a stack of cartons to the labeling machine; optional automatic material receiving mechanism can realize the collection of cartons into stacks after labeling.
4. A barcode printer can be added to realize the integration of barcode printing and labeling.
5. An inkjet printer can be installed to realize carton inkjet printing.
Application
Applicable labels: self-adhesive paper labels, self-adhesive film labels, barcodes, etc.
Applicable products: unstereoscopic large cartons (cardboard state).
Application industry: Widely used in printing, stationery, electronics, medicine and other industries.
Application examples: barcode labels on large cartons of electronic products, model and size labels on wardrobe cartons, model and brand labels on seat cartons, etc.
