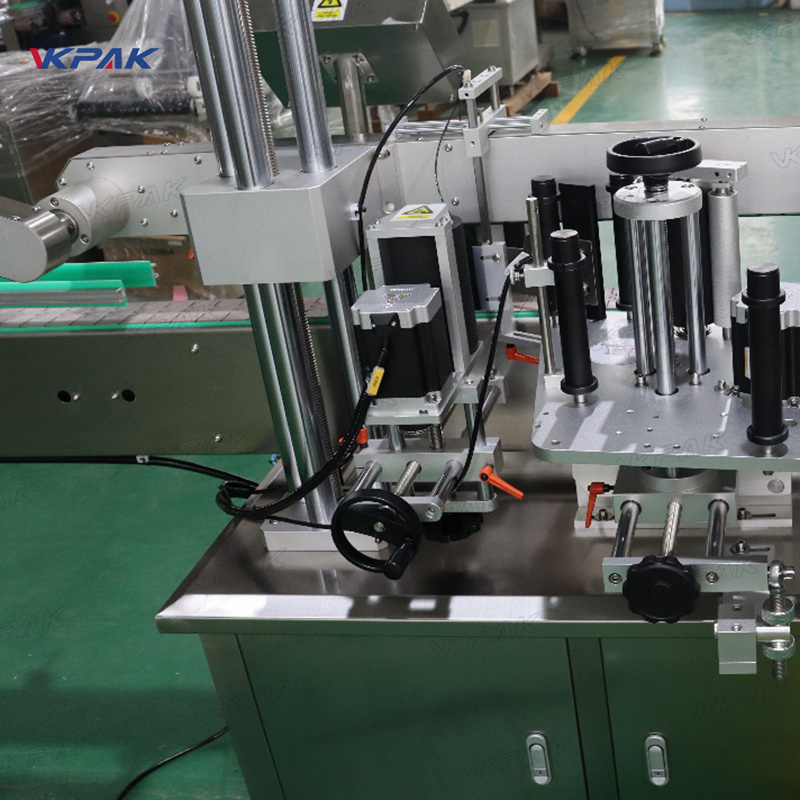

VK-OSL-P Automatic Square Oval Jar Single Side Round And Flat Bottle Labeling Machine
$8,900.00
Tax included. Shipping calculated at checkout.
This model labeling machine is a combination of a single-sided labeling machine and a positioning clamp mechanism. It is a multifunctional labeling machine that can label flat bottles and square bottles on a single plane, and can also label round bottles with one or two wrap-around labels.
Suitable for both round and flat bottles labelling with single-label.
Has a quick conversion feature, allowing for easy switching and adjustment of labeling configurations for different bottle shapes.
Equipped with a precise positioning sensor, ensuring labels are accurately placed on the designated positions of the bottles.
Output Speed: 30-180 pieces/minute depends on label and product size
Dimension: 2800(L)*1300(W)*1800(H) mm
View Video Download PDF
Description
This labeling machine is a combination of VK-OSL and VK-RPL, one labeling head can have two labeling modes, with the function of labeling both flat and round containers, with a very wide range of applications, not only for flat single-sided labels, but also for round bottle wrap-around labels. A machine with multiple uses, worth getting!
Bottle adaptability: The machine is equipped with adjustable mechanisms that can accommodate both round and square bottles of different sizes and dimensions. It ensures labels are securely applied to the surfaces of both round and square bottles.
Quick conversion: The labeling machine has a quick conversion feature, allowing for easy switching and adjustment of labeling configurations for different bottle shapes. This enables rapid adaptation to different types of bottles during the production process.
Precise positioning: The labeling machine is equipped with a precise positioning system, ensuring labels are accurately placed on the designated positions of the bottles. This helps maintain consistency and a professional appearance of the labels.
Efficient operation: The labeling machine has high-speed labeling capabilities, allowing for the completion of a large volume of labeling tasks in a shorter period. This improves production efficiency and reduces downtime on the production line.
Technical Parameter:
| Model | VK-OSL-P |
| Capacity (PCS/min) | 30-180（depend on bottle and label size） |
| Conveyor running side | from left to right / from right to left |
| Conveyor speed(meter/min) | ≤40 |
| Labeling error | ＜±0.5mm |
| The inner diameter of label roll | 76 mm |
| The outer diameter of label roll | 360 mm(max) |
| Suitable for label size | W:5-300mm, L:10-500mm |
| Suitable size of labeling objects | any size |
| Power supply（In China） | AC220V 50/60HZ single phase （customized） |
| Power | 1300W |
| Weight | 610 KG |
| Machine size | 2800(L)1300(W)1800(H)mm |
Application
Control Panel
This machine is equipped with a rotating PLC-controlled touch screen. This touch screen serves as the user interface for the machine's control system, which is operated by a programmable logic controller (PLC).
Top Press Conveyor
Using servo motor with encoder control.100% synchronization speed with bottom conveyor .ensure all bottle move stably.
Positioning Device
This device is specifically designed for precision labeling on round bottles and can be universally adjusted to accommodate bottles of different sizes. If you need to label square bottles, you can deactivate this device through the HMI.
Bottle Separation Wheel
This device provide a stable and continuous supply of bottles, It effectively controls the feeding speed and position of the bottles to match the working rhythm and requirements of the labeling machine.
