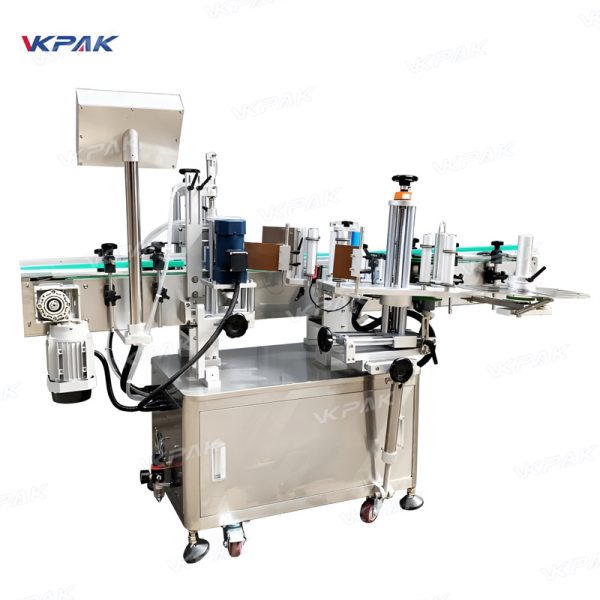

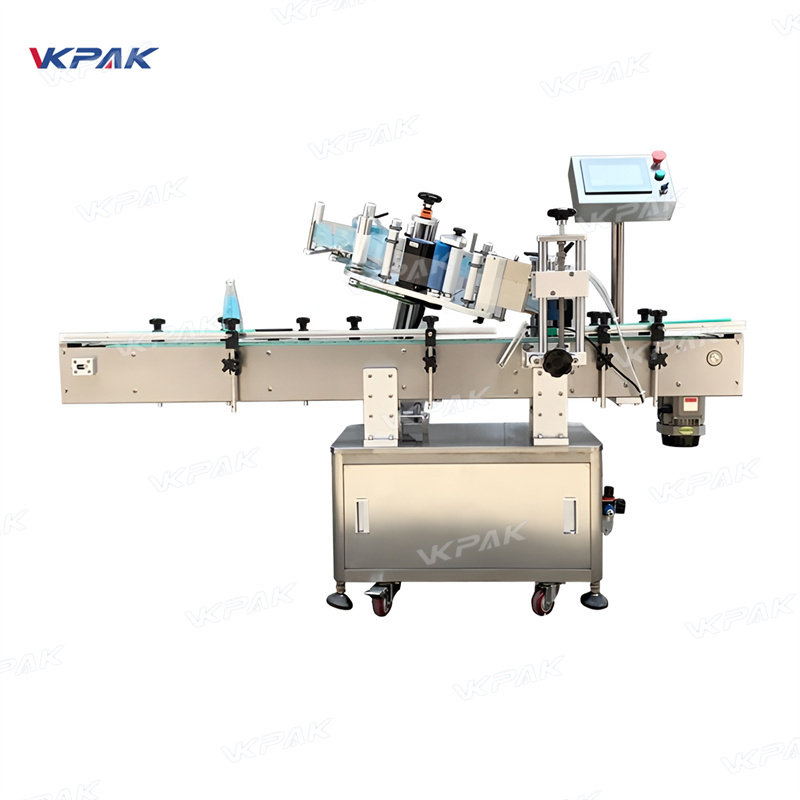

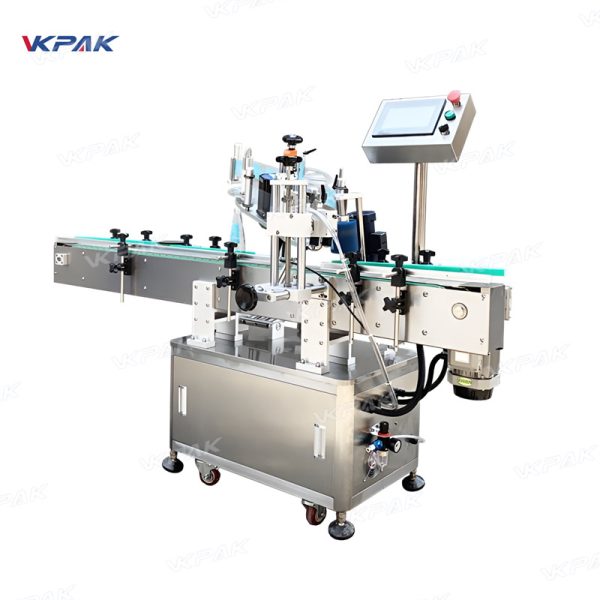

VK-RPL-T Automatic Round Jam Bucket Tub Conical Tapered Bottle Labeling Machine
$5,200.00
Tax included. Shipping calculated at checkout.
A tapered bottle labeler is a type of labeling machine designed specifically to apply labels to tapered or conical-shaped bottles. Tapered bottles have a non-uniform shape, often narrowing or sloping towards the top or bottom. The tapered bottle labeler is equipped with specialized mechanisms and adjustments to handle the unique geometry of tapered bottles. It is widely used for fruit jam bucket, ice cream bucket, yogurt glass bottles.
- Equipped with PLC touch screen control panel, the customizable interface is more user-friendly, it shows machine working status more clearly.
- Designed for the tapered bottles, machine is suitable for single side, double sides and wrap-around labeling
- It can work with automatic filling and capping machine to finish complete packaging production.
- Applicable for labeling tapered products like buckets, plastic cups.
Output Speed: 20-45 pieces/minute depends on label and product size
Dimension: (L)2000*(W)1300*(H)1500(mm)
View Video Download PDF
Description
This labeling machine is specially designed for tapered containers based on VK-RPL. Tapered bottle labeling machine allows the placement of one or two labels of the same width on cylindrical or conical upright standing containers such as buckut, tubs, cups, bottles, jars, cans in the pharmaceutical, food, daily chemical and other industries.
Upside tapered label engine or downside tapered engine (Optional)
Specially developed for conical bottle, labeling smooth, not wrinkled labeling, high precision.
Paramenters
| Model | VK-RPL-T |
| Labeling Speed(pcs/min) | 20-45(related to bottle and label size) |
| Labeling Accuracy(mm) | ±1.0mm |
| Suitable Label Size(mm) | (L)10-300mm (H)20-250mm |
| Suitable Bottle Size | Diameter: 25-130mm, H: 20-300mm |
| Roll Inside Diameter(mm) | Φ76mm |
| Roll Out Diameter(mm) | Φ320mm |
| Machine Size(mm) | (L)2000*(W)1300*(H)1500(mm) |
| Power Supply | AC220V 50Hz/60Hz |
| Operation direction | left to right or right to left |
| Net weight | About 250Kg |
| Label material | self-adhesive sticker, opaque or transparent label |
Application
Equipped with PLC operation panel, it is convenient to set and adjust technical parameters. The language of panel can be customized as your need.
Adopting 3-roller design, it can stick labels accurately and ensure there are no bubbles under stickers. The labeling structure can be customized according to your products.
The electric eye is designed for detecting products and controlling the machine to realize automated labeling. Improve working efficiency. Its sensitivity can be adjusted as needed.
Equipped with chain conveyor belt, it has large loading capacity, which can transport products steadily. The conveying speed can be adjusted as production need.
