VK-SPL-D Double-Layer Star Disk Long-Necked Juice Wine Liquor Bottle Labeling Machine
$9,500.00
Tax included. Shipping calculated at checkout.
This labeler is customized from the VK-SPL with an additional star disk for bottle neck labeling. It can label both the body and neck of a long-necked flask at the same time. This automatic high speed labeling machine is suitable for medicine, daily chemical, food, and other industries, and the cylindrical object is fully or semi-circular automated high-speed labeling; it adopts a return star disk rotating structure. The bottle is put in, pasted, and taken out, which greatly improves the qualified rate of labeling.
Output Speed: 50-100 pieces/minute depends on label and product size
Dimension: (L)2100*(W)1200*(H)1600(mm)
View Video Download PDF
Description
This labeler is customized from the VK-SPL with an additional star disk for bottle neck labeling. It can label both the body and neck of a long-necked flask at the same time. The star disk self-adhesive labeling machine is a practical labeling equipment, suitable for precise labeling of round bottles bottles. It can realize fixed-point and positioning labeling. The real human-machine interface system, online help information, and real human interaction are simple and easy to learn. Workers can operate it with a little training.

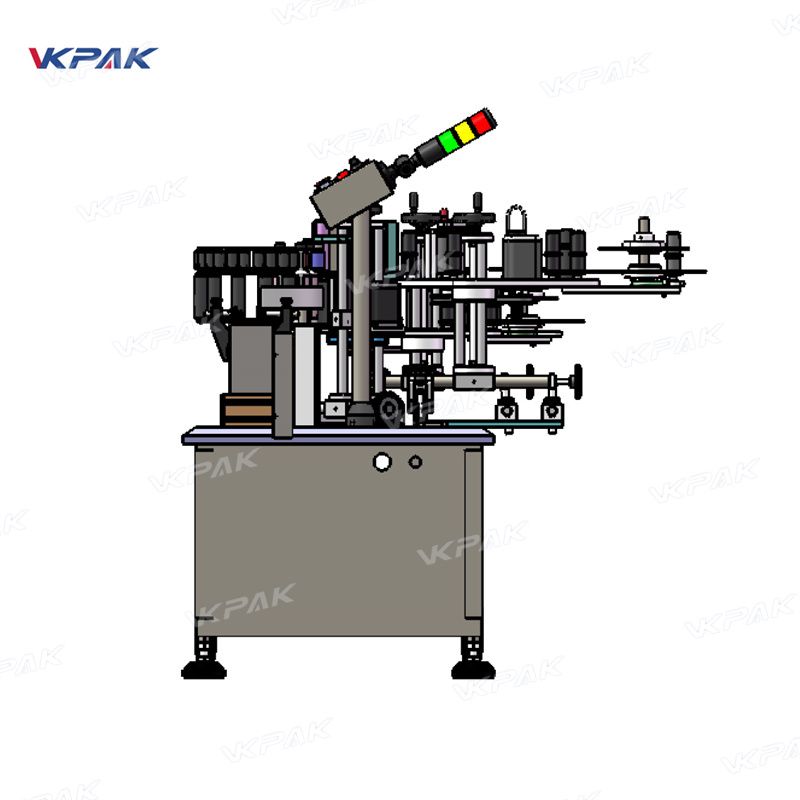

Drawing
Paramenters
| Model | VK-SPL-D |
| Labeling Speed(pcs/min) | 50-100(relate to product and label size) |
| Labeling Accuracy(mm) | ±1.0mm |
| Suitable Label Size(mm) | (L)10-300mm (H)10-130mm |
| Suitable Product Size | Diameter: 30-100mm, H:30-120mm |
| Roll Inside Diameter(mm) | Φ76mm |
| Roll Outside Diameter(mm) | Φ320mm |
| Machine Size(mm) | (L)2100*(W)1200*(H)1600(mm) |
| Power Supply | AC220V50Hz/60Hz/980W |
| Operation Direction | Left To Right Or Right To Left |
| Net Weight | About 250Kg |
| Label Material | Self-Adhesive Sticker, Opaque Or Transparent Label |
1. Suitable for high-speed circular labeling of round objects in the pharmaceutical, daily chemical, cosmetics and other industries.
2. The biggest feature of this model is the use of turntable roller label rubbing, high precision and high speed.
3. The machine uses a high-speed roller label rubbing device, high-speed labeling. In the past, labeling used belt-type label rubbing. Due to the deviation of the belt during movement, labeling was affected. Therefore, this labeling method completely eliminates the labeling error caused by the up and down movement of the belt.
4. The labeling head can choose to use a world-renowned factory high-precision servo motor to control the labeling, realizing true closed-loop control, high-precision segmentation, and the maximum labeling speed can reach 50m/m.
5. The machine structure is simple and compact. Easy to operate and maintain. Universal bottle separation device, no need to replace accessories for bottles of any diameter, quick adjustment.
