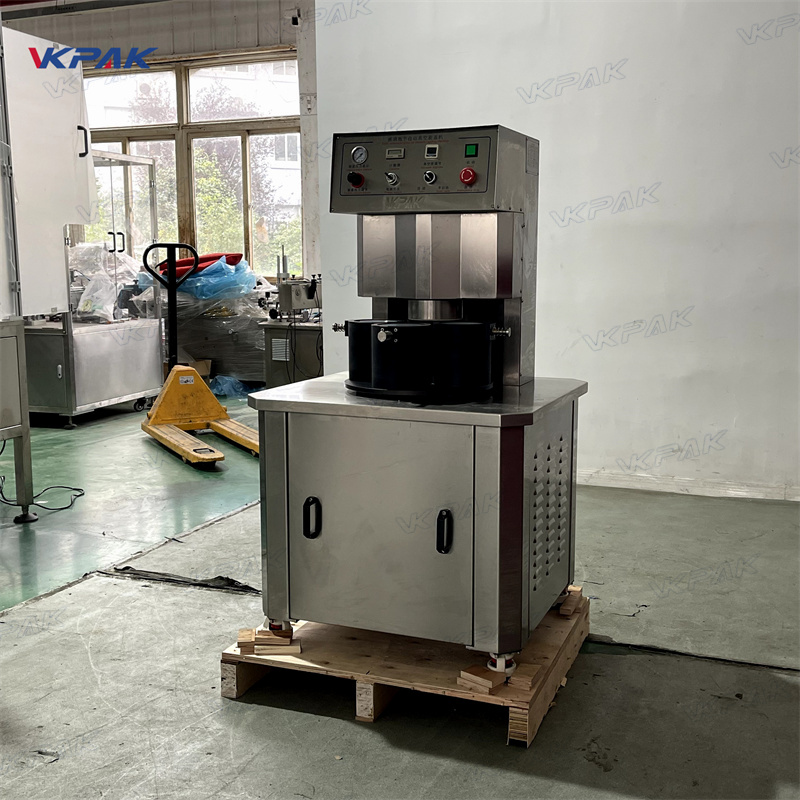

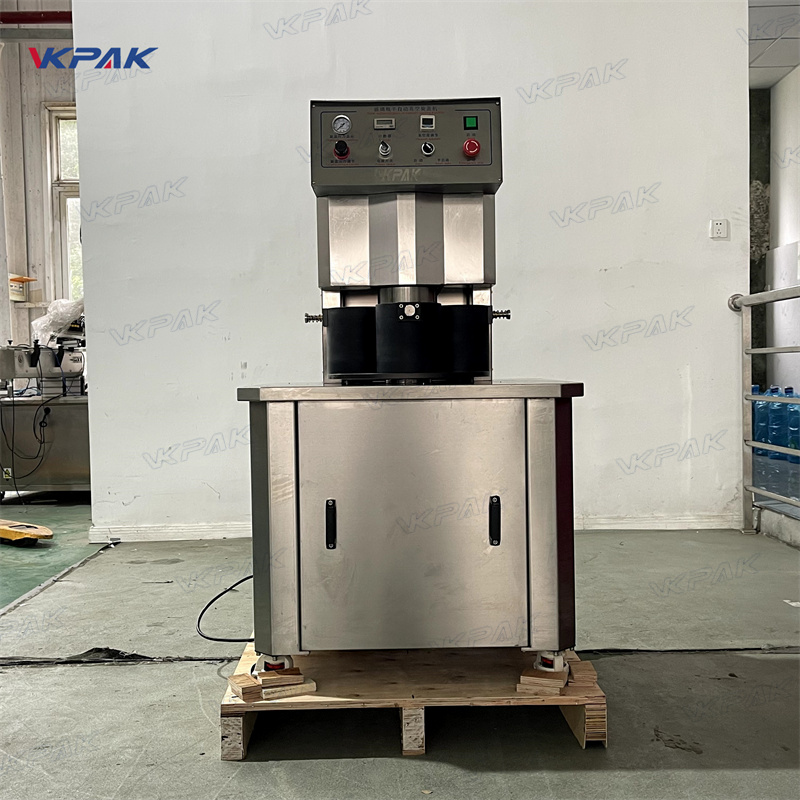

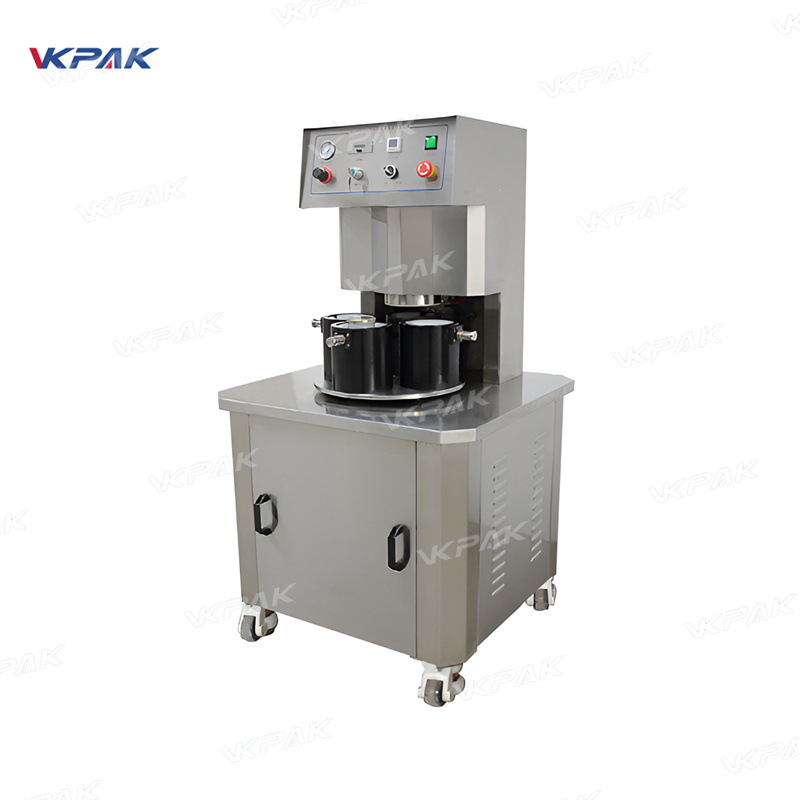

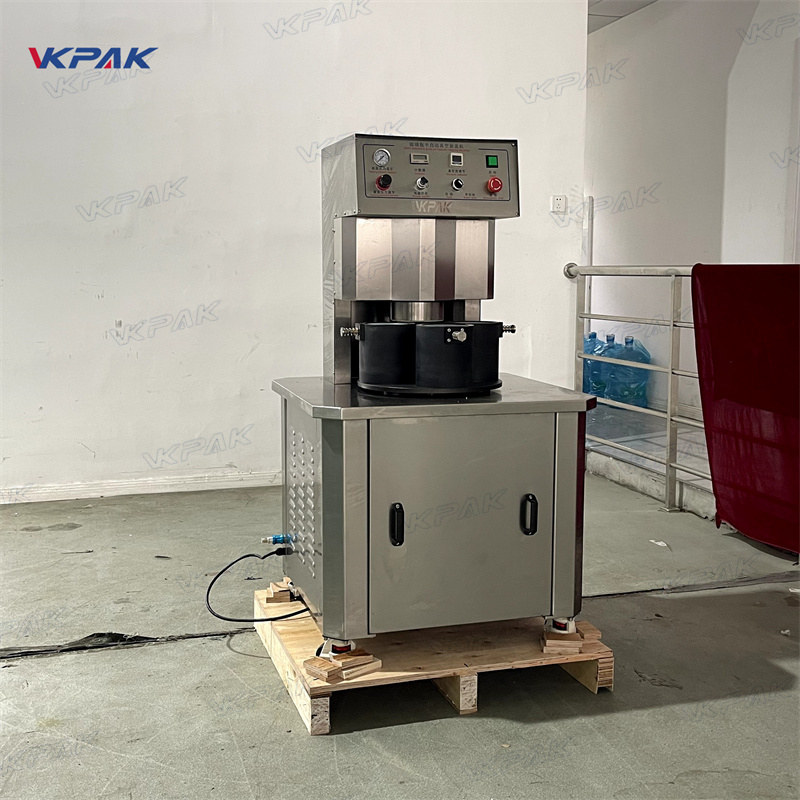

VK-SVC-4 Semi-Automatic 4 Stations Twist Off Cap Glass Jar Vacuum Capping Machine
$3,600.00
Tax included. Shipping calculated at checkout.
The vacuum capping machine is developed by our company for many years of production experience. It is suitable for vacuum packaging of glass bottle, tinplate claw type rotary cover in food can industry. The open fully sealed vacuum chamber technology is applied to the capping machine and the sealing machine. It adopts the integrated design of machine, electricity and gas, the structure is compact and reasonable, the operation and maintenance is convenient, the main pneumatic and electrical components use imported brands, and the performance is stable and reliable. Widely used in food and beverage, condiments, health products pen in various industries of three (four) glass bottle vacuum cap.
Output Speed: 900-1200 Bottles/hour
Dimension: (L)750*(W)700*(H)1310(mm)
View Video Download PDF
Description
Semi-Automatic vacuum capping machine adopts vacuum pump vacuum the glass jar and capping method. The screw cap torsion and vacuum degree is adjustable depends on the demand. Unique design make it compatible with a variety of different shape, size of the bottle cap unscrewing. Strong compatibility, and easy to adjust.
The semi-automatic vacuum capping machine widely used in food, canned, beverage, condiment, health care products and other industries in the three (four) spin tinplate cover glass vacuum screw cap.
It belongs to semi-automatic model (manual cover, manual entry and exit bottle). Using pneumatic drive rotary cover, using accurate control of actuator air pressure to achieve torque control, non-friction torsion limit makes the service life longer; because of the use of reliable full sealing technology, the configuration of low power vacuum pump can achieve ideal vacuum degree. Vacuum can be set as needed. economy, wide applicability, ease of use, reliability and mobility, suitable for small production workshops, special specification uses, and laboratory use.
Application
Suitable bottle shape has round, square, polygon, all kinds of special shape, strong applicability; is an ideal glass bottle automatic vacuum twist-on glass jar capping machine, widely used in food and beverage, sauce, seasoning, medicine, health products and other fields.
Drawing
Paramenters
| Model | VK-SVC-4 |
|---|---|
| Capping Speed | 900-1200 Bottles/hour |
| Capping Torque | 2.5～3.5 N.m |
| Diameter of Caps | 38-100mm |
| Height of Bottle | 55-175mm |
| Diameter of Bottle | 40-100mm |
| Air Supply | 0.5-0.8 Mpa |
| Air Consumption | 0.1 m3/min |
| Vacuum Degree | -60KPa～-80KPa |
| Voltage | AC Single-phase 220V |
| Power | 1.2KW |
| Machine Weight | 150 KGS |
| Machine Size | 750*700*1310 mm |
Features:
Four capping station.
Automatic vacuum and capping in one work progress.
Suitable for different size and shape bottles, easy to change mould.
All stainless steel and aluminum made, with the advantage of stable and strong.
Details
Operation Step
1. Choose rotary cap head mold according to the size of cap
2. Adjust the height according to the height of bottle
3. Put the bottle in the mold cave.
4. Press the button to run the caves automatically.
5. Take the sealed bottle out.
