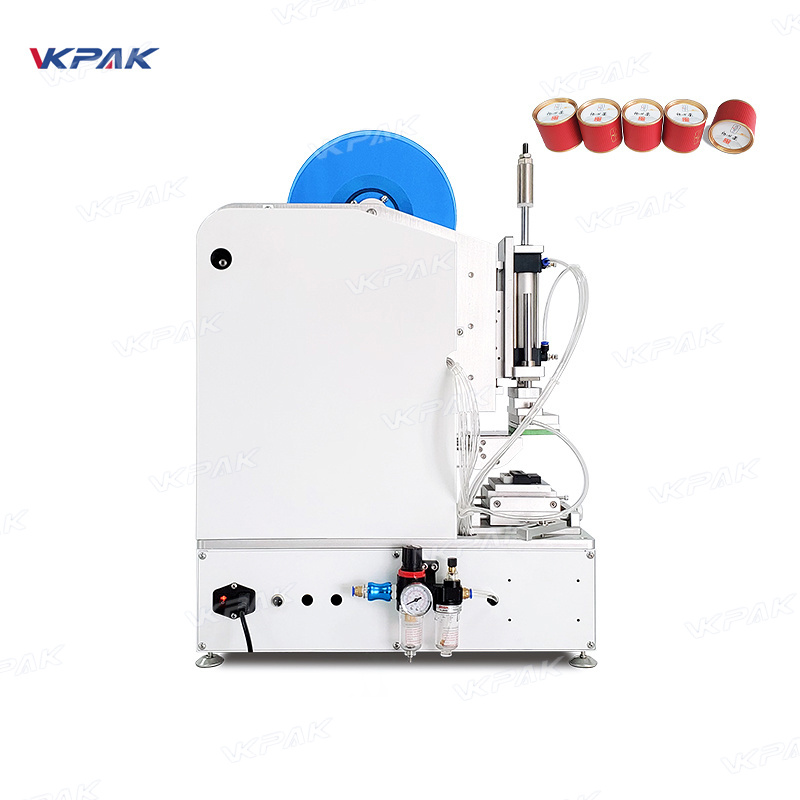

VK-T804 Semi-Automatic High-Precision Flat Labeling Machine
$2,300.00
Tax included. Shipping calculated at checkout.
Suitable for labeling on the top plane, arc surface and concave surface of products, labeling accuracy is up to + 0.2mm, mainly used for precision labeling of electronic and digital products, such as SD card, mobile phone battery, FPC, mobile phone charger labeling, etc. High precision labeling manifest excellent quality product and greatly improve products competitiveness.
Applications
Applicable labels: self-adhesive label, self-adhesive film, electronic supervision codes, bar codes
Applicable products: products requiring a label on a flat, cambered, round, concave or convex surface.
Applicable industries: food, toy, daily chemicals, electronics, pharmaceutical, hardware, plastic, printing
View Video Download PDF
Description
Technical Parameters | The following are the technical parameters of the standard model, if have other specicl requirements and functions can be customized |
Labeling Accuracy | ±0.2mm |
Labeling Speed | 15-20 pieces/min |
Applicable for product diameter | Length: 10mm-300mm, width: 20mm-300mm, Thickness: 5mm-85mm |
Applicable Label Size | Length:10mm-50mm, Bottom paper width: 25mm~100mm |
Device Dimensions | 575mm*427mm*815mm |
Applicable Power Supply | 220V/50HZ |
Weight | 45KG |
Applicable Label Roll lnner Diameter | 76mm |
Applicable label Roll lnner Diameter | 280mm |
The standard machine comes with one set of molds, additional molds cost $60 each.
1 ) Control System: Japanese Panasonic control system, with high stability and extremely low failure rate.
2 ) Operation System: Color touch screen , directly visual interface easy operation. Chinese and English available. Easily to adjust all electrical parameters and have counting function , which is helpful for production management.
3) Detection System: Using Germany Sick/Italian Datasensor label sensor and Japanese Panasonic product sensor, which are sensitive to label and product , thus ensure high accuracy and stable labeling performance. Greatly saves labor.
4) Alarm Function: The machine will give an alarm when problem occur, such as label spill , label broken , or other malfunctions.
5) Machine Material: The machine and spare parts all use material stainless steel and anodized senior aluminum alloy, with high corrosion resistance and never rust .
6) Equip with a voltage transformer to adapt to local voltage.
