VK-TFS-006H Semi Automatic Skin Care Lotion Plastic Squeeze Soft Tube Filler Sealer
$8,600.00
Tax included. Shipping calculated at checkout.
This semi auto tube filling and sealing machine is widely used in various aluminum plastic compound soft tube, plastic soft tube. VK-TFS-006H adopts indexing device, completing a series of functions, including automatic filling, inside and outside heating, end-sealing, batch number printing, and finished product exiting. The machine is featured by accurate filling, stable and adjustable heating time, good sealing effect. The machine has ten tubes which can work automatically. The machine works stably and reliably, without noise and other pollution.

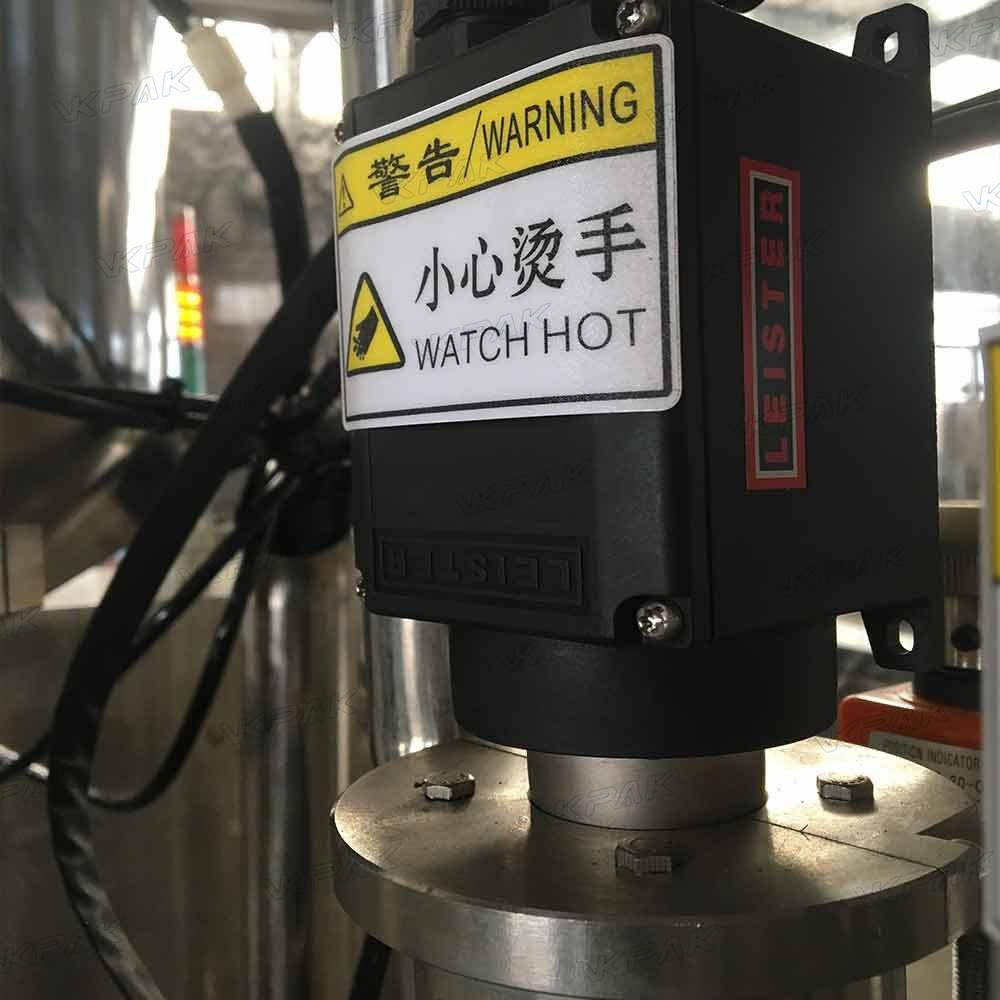

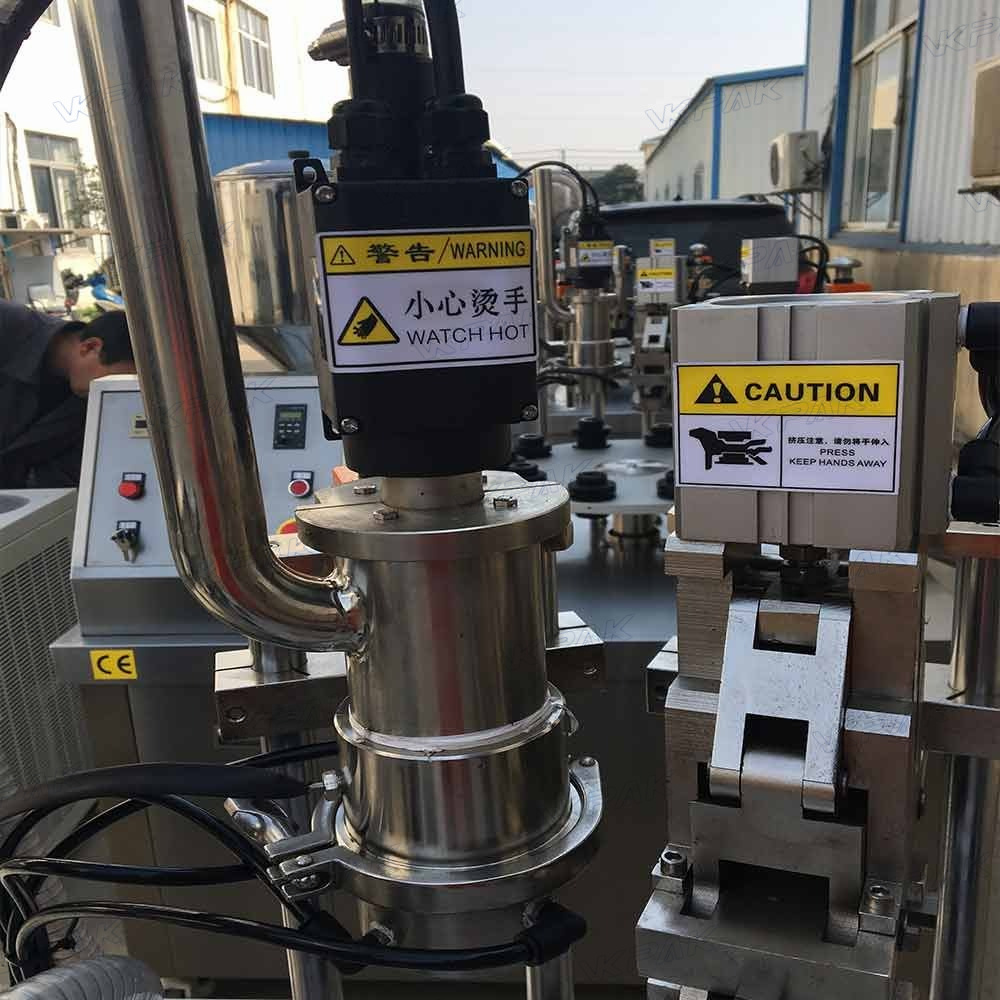

Sealing Method: Hot Air Sealing
Output Speed: 20-40 pieces/min
Dimension: L1300*W700*H1400mm
View Video Download PDF
Description
This semi auto tube filling and sealing machine is widely used in pharmaceutical, cosmetic, food and chemical industries etc. It is applicable in various aluminum plastic compound soft tube, plastic soft tube which fill pack all kind of Such as ointment, adhesives, AB glue, neoprene, epoxy glue, skin cream, hair cream, boots oil, toothpaste and else liquid, lotions and cream etc.
Technical Parameter:
| Model | VK-TFS-006H |
| Weight | 250Kg |
| Power | 220V/50Hz |
| Filling Quantity | 5ml-75ml/75-250ml |
| Air Consumption | <30 m³/min |
| Compressed Air | 0.6-0.8Mpa |
| Dimension | 1300*700*1400mm |
| Motor | 4.5Kw |
| Capacity | 20-40 tubes/min |
| Tube size | 35mm |
| Quantity Error | <1% |
1. Small tabletop machine, takes up less space and easy to move and load.
2. Simple adjustment on sealing temperature and sealing time to suit different tube material.
3. Can be matched with date or batch code print device.
3. The whole machine frame adopt stainless steel.
4. Confirm to international GMP standard.
Application:
It is suitable for the filling viscous materials, application of agrochemical, daily chemical, food and other industries. Can be matched labeling machine equipment into the production line.
