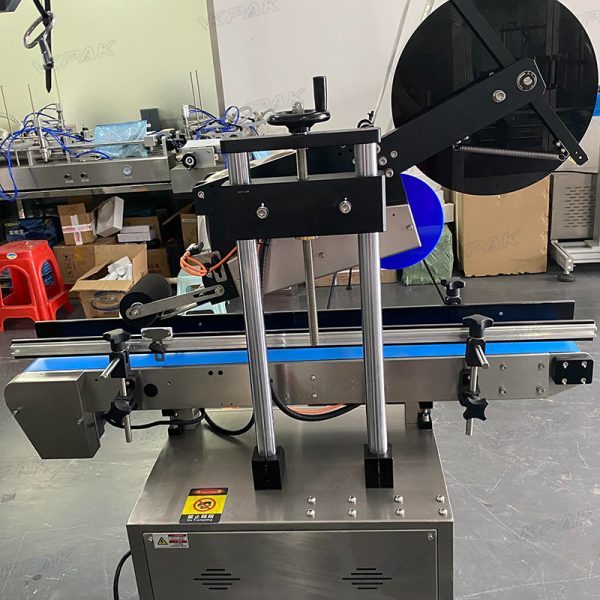

VK-TL-FT Desktop Paper Pouches Plastic Bags Hanging Tag Top Side Labeling Machine
$2,000.00
Tax included. Shipping calculated at checkout.
This tabletop labeling machine is used for sticking labels on the top side of products with flat surface like paper pouches, plastic bags and hangtag. It is with a reasonable design and the dimension is not that large as the full automatic labeling machine. It is the ideal choice for most of suppliers.
Compact machine body, it has efficiency and mobility for small production.
Roller / Brush ensure the card/pouch in position before labeling for a higher accuracy.
Output Speed: 20-50 pieces/minute depends on label and product size
Dimension: 1200*650*560mm
View Video Download PDF
Description
The automatic flat label applicator is suitable for labeling or self-adhesive film on the upper surface of various items, such as books, folders, boxes, cartons, etc. The replacement of the labeling mechanism is suitable for labeling on uneven surfaces, and is widely used in large flat labeling of individual products, labeling of flat objects with a wide range of specifications.
The english operation panel make it easy to test and use the machine, the label separating speed is adjustable. And can set the delay time of label separating. The beside two knobs can control the labeling speed and conveyor speed as your need.
The conveyor width can be adjusted according to the bottle diameter. It is better to be smaller than 120mm Dia.
Automatic fiber amplifier, automatic induction product labeling, simple and intelligent operation.
Speed-regulating motor, good stability, no slip loss, stable running at high roads, reliable use and convenient maintenance.
Made of high-quality stainless steel, the whole machine is beautiful and elegant, with long service life.
Technical Parameter:
Model | VK-TL-FT |
Labeling Speed | 20-50pcs/min(depends on material size) |
Labeling accuracy | ±1mm |
Suitable labeling Size | ≤150mm(W) |
Roll inside diameter(mm) | Φ75mm |
Roll outside diameter(mm) | Φ250mm |
Suitable product size | 0-300mm*0-350mm(W*H) |
Machine size | 1200*650*560mm |
Machine weight | 90kg |
Application:
This tabletop labeling machine is used for applying labels, barcodes, stickers, price tags on any flat packaging product like credit card, phone card, scratch card, books, folders, boxes, cartons etc.
Designed for sticking labels on the top side of products, the position of labeling structure can be adjusted according to labeling objects.
There is an electric eye, using for detecting passing by labeling objects and control the machine to work automatically. It can improves labeling accuracy greatly
Designed with PLC panel, itis easier to set and adjust working parameters. The language of panel can be customized as your need.
With roller/brush, it can help to stick labels on paper cards, ensuring there are no bubbles under stickers. The electric eye is for detecting products and control the machine to run, intelligent and efficient.
